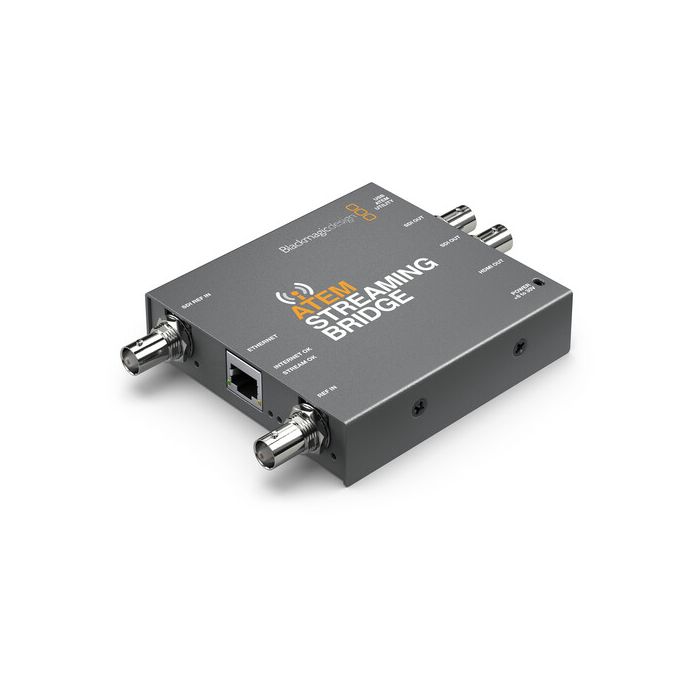

Blackmagic Design ATEM Streaming Bridge
by Blackmagic DesignFor Any ATEM Mini Pro Streaming Switcher
HDMI and SDI Outputs
Up to 1080p60 Resolution Output
Direct, Network, and Internet Connection
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Blackmagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers
- Universal Power Supply with International Adapters
The Blackmagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers allows you to convert the IP signal from any ATEM Mini Pro unit into SDI and HDMI video. It features two SDI outputs and a single HDMI output and supports resolutions up to 1080p60. You can connect the Streaming Bridge directly to the streaming output of your ATEM Mini Pro, and it will provide SDI and HDMI output for use in broadcast environments, or directly to a monitor. You can also connect the streaming bridge to the same LAN that an ATEM Mini Pro is connected to, and the devices will find each other allowing you to easily stream across the network.
The downloadable software enables you control the decoding settings as well as set an IP address to the device and save that information to your computer. That information can be emailed to any computer connected to an ATEM Mini Pro, and this allows the ATEM Mini Pro to locate and stream to the Streaming Bridge connected to the internet.
| Audio Input Connectors | None |
| Video Output Connectors | 2 x BNC (3G-SDI / HD-SDI) 1 x HDMI (HDMI 1.4) |
| Output Video Format | HDMI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps SDI (10-Bit 4:2:2 YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps |
| Audio Output Connectors | None |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M-B/425M-A/425M-B |
| Other I/O | 1 x RJ45 2 x BNC Reference |
| Expansion Slots | None |
| Video IP Decoding | H.264: 1920 x 1080 |
| Power Connector | 1 x Barrel (6 to 30 VDC) Input |
| Power Consumption | Device: 6 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% (Recommended) |
