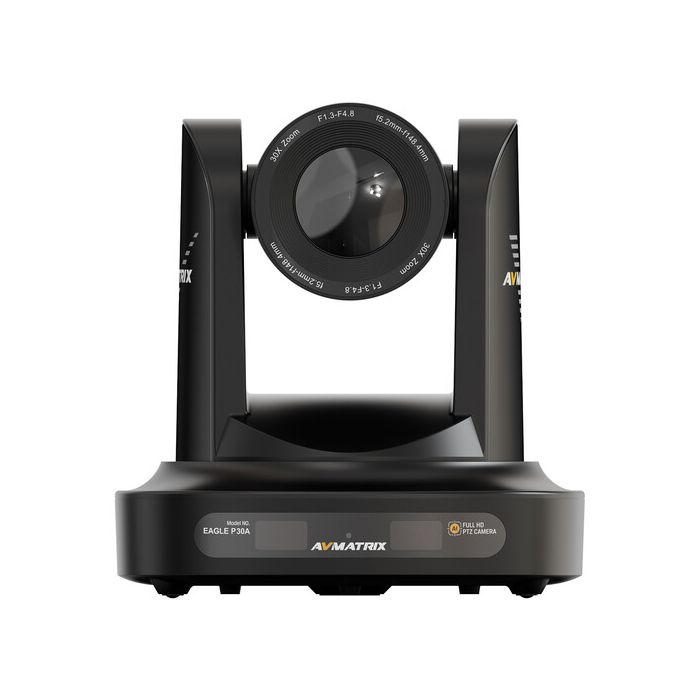

AVMATRIX EAGLE P30AAI Tracking FHD PTZ Camera

by Avmatrix

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

EAGLEP30A

Add a powerful PTZ camera with 1080p60 video capture and auto-tracking to your professional broadcasts with this EAGLE AI Tracking 1080p PTZ Camera with 30x Zoom from AVMATRIX.

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

AVMATRIX EAGLE AI Tracking 1080p PTZ Camera with 30x Zoom
12V Power Adapter
IR Remote Control
USB-A 3.0 Cable
RS-232 Serial Cable
RS-485 Terminal Connector

Detalji

Add a powerful PTZ camera with 1080p60 video capture and auto-tracking to your professional broadcasts with this EAGLE AI Tracking 1080p PTZ Camera with 30x Zoom from AVMATRIX. The camera offers precision control and multiple output ports, and is designed for broadcast, security, and teleconferencing needs. It also supports IP, UVC, VISCA, Pelco-D, and Pelco-P control protocols. This camera supports video output via IP, USB, HDMI, and 3G-SDI and has a LAN port for IP streaming via RTMP/S, SRT, RTSP, or ONVIF.

1080p Capture

The EAGLE features a high-resolution 2.07MP 1/2.8" CMOS sensor that can capture up to 1080p60 video.

AI Auto-Tracking and Autoframing

The EAGLE features intelligent AI tracking with four selectable modes that can be utilized to follow subjects around a stage or room during live events, lectures, or conferences from up to 59' away:

Real-time
Stage tracking
Area tracking
Intelligent view

The AI technology also supports auto-framing to reframe and reposition your subject in the frame when you're in real-time mode, and in stage tracking mode you can adjust the size of the frame.

Optical Zoom Lens

The camera features a 30x optical zoom lens that maintains a crisp image throughout the zoom range. It also features a wide horizontal field of view and an additional 16x digital zoom to get even closer to your subjects with little image quality loss.

Versatile Interfaces

Output your video in multiple ways using the HDMI, 3G-SDI, USB-A 3.0, and LAN streaming ports. All of the ports can output video up to 1080p60, and you can control the camera simultaneously via UVC, serial, or IP.

FreeD Support for AR/VR

Add green screen shots to your productions using FreeD protocols, which are supported by the camera without additional sensors. This enables easy integration into virtual and augmented reality productions.

Control Protocols

In addition to UVC control over the USB port, the camera can be controlled via VISCA-over-IP, UDP, and ONVIF protocols via the LAN port, or it can be controlled via RS-485 or RS-232 serial using VISCA, Pelco-P, or Pelco-D protocols.

Presets

The camera supports saving up to 255 presets via optional IP/serial controllers, and it can save up to 10 presets on the included IR remote. The preset freeze function allows you to "freeze" actions for free switching between preset configurations.

Other Notable Features

Manual or autofocus
±175° panning range
-30/+90° tilting range
ONVIF, RTSP, RTMP/S, SRT streaming protocols
H.265/H.264/MJPEG compression format support
3.5mm line audio input
100 Mb/s Ethernet
Powered via included power supply or via PoE+

Više informacija

Imaging
Image Sensor	1/2.8"-Type CMOS
Effective Sensor Resolution	2.07 Megapixel
Focus Control	Autofocus
	Manual Focus
Exposure Control
Signal-to-Noise Ratio	50 dB
Minimum Illumination	0.5 Lux at f/1.8 Aperture
Flip / Mirror Support	Image Flip
White Balance	Presets: Auto, Manual, One-touch
	Range: 2400 to 7100K
Lens
Focal Length	5.2 to 148.4mm
Max Optical Zoom	30x
Max Digital Zoom	16x
Field of View	Horizontal: 58.1 to 2.14°
	Vertical: 33.8 to 1.2°
	Diagonal: 65.4 to 2.48°
Video Capture
Video Output	HDMI / RJ45 / SDI/BNC
	1920 x 1080p
	1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
	1920 x 1080i at 50/59.94/60.00 fps
	1280 x 720 at 50/59.94/60.00 fps
	USB
	1920 x 1080p
	1920 x 1080p at 10/15/20/25/30.00/50/60.00 fps
	1280 x 720 at 10/15/20/25/30.00/50/60.00 fps
	800 x 600 at 10/15/20/25/30.00/50/60.00 fps
	1024 x 576p at 10/15/20/25/30.00/50/60.00 fps
	640 x 480p at 10/15/20/25/30.00/50/60.00 fps
	800 x 448 at 10/15/20/25/30.00/50/60.00 fps
	480 x 270p at 10/15/20/25/30.00/50/60.00 fps
	320 x 180p at 10/15/20/25/30.00/50/60.00 fps
Embedded Audio	HDMI/IP/LAN (RJ45)/SDI/USB
Internal Recording	No
Audio Recording	Yes
Broadcast Output	NTSC/PAL
Supported Protocols	Camera Control
	FreeD/IP/IR/ONVIF/Pelco-D/Pelco-P/RS-232/RS-485/UVC/VISCA
	Video Streaming
	HTTP/RTMP/RTMPS/SRT
IP Streaming	H.264/H.265/MJPEG
	640 x 480 to 1920 x 1080 at 10p, 15p, 20p, 25p, 30p, 50p, 60p (Main Stream: 64.00 to 40,000 Kb/s)
	320 x 180 to 1280 x 720 at 10p, 15p, 20p, 25p, 30p, 50p, 60p (Sub Stream: 64.00 to 40,000 Kb/s)
Control
Presets	255 via IP, RS-232, RS-485, UVC, VISCA, Pelco-P, Pelco-D
	10 via IR
Pan/Tilt	Pan: 340° (-170 to 170°) at 0.1 to 100°/s
	Tilt: 120° (-90 to 30°) at 0.1 to 45°/s
Networking
Wireless	No
Interface
Video I/O	1x HDMI Output
	1x BNC (3G-SDI) Output
	1x USB-A 2.0 Output
	1x RJ45 LAN Input/Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O	1x DIN 8-Pin (RS-232) Control Input
	1x DIN 8-Pin (RS-232) Control Output
	1x Block 2-Pin (RS-485) Control Input/Output
Built-In Microphone	No
Power
PoE Support	Yes: PoE+ 802.3at
Power I/O	1x Barrel (12VDC at 1.2 A) Input
Power Consumption	Device: 13.8 W
Environmental
Operating Conditions	14 to 122°F / -10 to 50°C at 20 to 80% Humidity
Storage Conditions	14 to 158°F / -10 to 70°C at 20 to 95% Humidity
Impact Resistance	No
Environmental Resistance	No
General
Mounting	1x 1/4"-20 Female for Bracket/Ceiling/Tripod/Wall
Dimensions (W x H x D)	7.1 x 6.7 x 6.7" / 180 x 170 x 170 mm
Weight	2.78 lb / 1.26 kg (Body Only)
