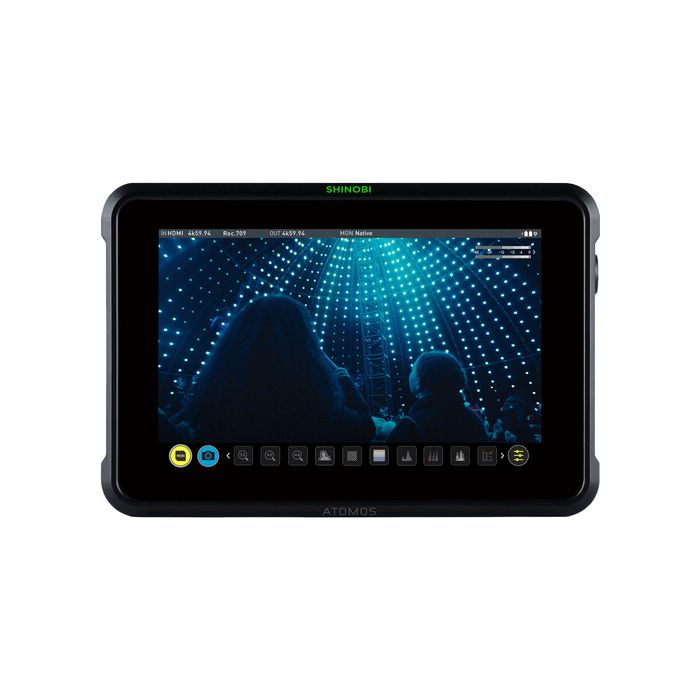

Atomos Shinobi 7

by Atomos
Raspoloživost Sarajevo: Isporuka 7-10 dana
Raspoloživost Zagreb: Dostupno
SKU
ATOMSHB002

An ideal directors’ monitor, focus pullers’ monitor, program or preview display for video switchers, and perfect for vloggers presenting to camera.

KM 1.503,50 KM 1.285,04

Sadržaj pakovanja

  • Shinobi 7
  • International DC power adaptor
  • Quickstart guide

Big. Bright. Beautiful.

Shinobi 7 combines a large 7” HDR screen with a calibrated peak brightness of 2200nits and the lightweight monitor-only functions of the original Shinobi. The Shinobi 7 can be used in the brightest of environments to monitor signals up to 4Kp60 via HDMI or SDI. An ideal directors’ monitor, focus pullers’ monitor, program or preview display for video switchers, and perfect for vloggers presenting to camera.

Camera controls at your fingertips

Control your favorite cameras by using the intuitive touchscreen of the Shinobi 7, designed to give you fast access to the most crucial camera features. Focus on the beautiful image and make dynamic adjustments of iris, white balance, shutter angle and ND.  With the optional Atomos USB-C to serial cable, support is available out the box for the Z Cam E2 series camera, providing direct control of all the menu configurations.  The additional USB and RJ45 control ports on the Shinobi 7 also provide support for future developments, as more options are added for touch screen camera control.

HDR in the field

The Shinobi 7 screen displays a stunning 10+ stops of dynamic range in real time from Log/PQ/HLG signals. Combined with our unique HDR monitoring features, the Shinobi 7 simplifies the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most – while shooting. With Adaptive Cooling, you can also prioritize reduced fan noise or the peak brightness of the display. We look after the technology so you can focus on the storytelling.

Built-in 3D LUT box

In addition to Log to HDR conversions, you can also use your own custom 3D LUT to feed downstream to other devices or live feed.  Load up to eight custom LUTs at any time via the SD Card Slot and instantly select between them, maintaining creative intent at all times. When used with the selfie mode, the large display acts as a perfect confidence monitor that allows you to ’bake-in’ a LUT to your camera input, to achieve your LOOK at capture for that perfect piece to camera.

The best of AtomOS 10

Shinobi 7 utilizes our AtomOS 10 platform, and is packed with an extensive suite of scopes and simple one-touch operations. Shinobi includes monitoring tools for focus, framing & exposure, including Focus Peaking, Focus Peaking, 4:1 / 2:1 / 1:1 Zoom, Zebra, False Color, Cine and Social Frame Guides, SMPTE Safe Areas, Waveform, RGB Parade, Vectorscopes, Anamorphic De-squeeze and 3D LUT support.

Atomos ‘Analysis’ mode

We understand how important it is to see what you’re shooting at all times. With the Shinobi’s Analysis feature you can simultaneously view what you are shooting, a waveform, histogram and vectorscope, ensuring complete control of your image. You can even switch between different waveform, histogram and vectorscope options on the fly with a single touch.

Continuous Power

With dual battery slots you can easily hot-swap batteries during your shoot and never be caught without power. The Shinobi was designed from the ground up to optimize battery usage while monitoring, as the dual slots combine to allow you to run all day. The dedicated locking DC jack input allows you to connect to mains power on-set, and can be used with the optional DC to DTAP cable with V-lock batteries to power the Shinobi 7 in the field.

Pro I/O and Cross conversion

With support for up to 4Kp60 via the HDMI inputs, the Shinobi 7 cements itself into any video workflow by enabling cross conversion between 4K HDMI and 3G-SDI signals. Output low-latency video signals, with the ability to bring HDMI cameras into SDI workflows or vice versa without the need for additional convertors.

Factory & User calibration

Factory calibrated for Rec.709, Shinobi 7 also supports user-calibration via the free Atomos Calibration software for ongoing calibration. Using the optional USB-A or USB-C to Serial cable and X-Rite’s i1DisplayPro/Plus, the calibration software easily automates the calibration of the screen to ensure accurate and reliable monitoring results.

Physical Specifications
Dimensions (W x H x D mm) 198 x 133 x 39
Weight 577g / 1.04lb
Mount points 1 x Anti rotation 1/4" / 3/8 top and bottom
Environmental
Ambient operating temperature Up to 40° C
Construction and Control
Body Polycarbonate ABS Plastic
Cooling Actively controlled fan and heat sink
Multi-function button Power / lock Screen
Power
Input voltage 6.2V - 16.8V
Operating power 5.8V - 7.2V
Compatible batteries 2 x NPF L series
Built in battery No
Battery Run time (Record) 5200mAh - up to 2hrs, 7800mAh - up to 3hrs
Continuous power Dual battery slots
DC in connector Locking DC jack
Dtap Via optional DTap to DC cable
Display
Touchscreen SuperAtom IPS panel (capacitive touch)
Size 7"
Resolution 1920 x 1080
PPI 325
Bit depth 10-bit (8+2 FRC)
Backlight Type Edge lit
Brightness (cdm2 / nits) 2200 +/- 10%
Aspect ratio 16:9 Image Display
Color Gamut Rec.709
Calibration support Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail)
Color Pipeline
Gamma Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log
Gamut Bt2020, DCI P3, PDCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT Display .Cube Format
3D LUT Down Stream Loop out
3DLUT 50/50 Yes
Monitoring Modes Native / HLG / PQ / 3D LUT
HDR output Conversion HLG / PQ
Video Input
HDMI 1 x HDMI (2.0) 4Kp60
SDI 1 x 3G SDI - 2k p60
Bit Depth 8/10-bit Video
Video Chroma Subsampling YCbCr 420 & 422
Metadata
Video Output
HDMI 1 x HDMI (2.0) 4Kp60
SDI Play out 1 x 3G SDI - 2Kp60
Web Streaming
Video Signal Conversion
HDMI to SDI Yes
SDI to HDMI Yes
Audio In/Out
HDMI 2ch 24-bit, input dependent
SDI 8ch 24-bit, input dependent
Headphone out 3.5mm 2ch.
Timecode / Sync
Embedded HDMI and SDI
Resolution and Frame Rates (Record, Monitor & Playback)
4k DCI Monitor Only: DCI: HDMI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
4k UHD Monitor Only: UHD: HDMI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
2K DCI 2046 x 1080 Monitor Only: DCI 2046 x 1080: SDI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
FHD 1920 x 1080 Progressive Monitor Only: HDMI and SDI : 23.98/24/25/29.9/30/50/59.94/60p
FHD 1920 x 1080 Interlaced Monitor Only: 50/59.94/60i 1280 x 720p: 50/59.94/60p
Recording CODEC
CDNG No - Monitor only
Apple ProRes RAW No - Monitor only
Apple ProRes No - Monitor only
Avid DNxHD No - Monitor only
Avid DNxHR No - Monitor only
H.265 No - Monitor only
H.264 No - Monitor only
Playback
Playlist No - Monitor only
Recording functions
Pre-roll record No - Monitor only
ISO Record No - Monitor only
Switched Program Record No - Monitor only
Timelapse No - Monitor only
RAW to Video Record No - Monitor only
Simultaneous proxy record No - Monitor only
4k to HD No - Monitor only
Multi Input / Switching
Supported media
SD SD Card slot for LUTs / Firmware
File System ExFAT
On screen tools
MultiScope Analysis View Image, selectable Waveform, Histogram, Vectorscopes and Audio bars
Waveform Yes, 3 size / Position
Histogram Luma and RGB
RGB parade Yes, 3 size / position
Vector scope Yes, 2 size / position and zoom
1 x Zoom Yes. 1:1 Pixel mapping for 4K
2 x Zoom Yes
4 x Zoom Yes
Focus peaking Color selected / focus assist sharpening / threshold setting / color / mono / edges only
False colour Yes
Zebra Yes, adjustable
Isolate color channel Blue only
Cine Frame Guides 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
Social Frame guides 9:16, 1:1, 191:1, 4:5
Safe areas Action and Graphic
Grid markers 9 Grid
Anamorphic desqueeze 1.25x, 1.33x, 1.5x, 1.8x, 2x
Display Flip Vertical and Horizontal selfie mode
Onboard Signal Processing
4K UHD Downscale for HD Yes
DCI Crop Yes
Remote control
External Device Control
Serial 2.5mm Jack USB-C to Serial (ATOMCAB018)
USB Camera control for supported cameras in future firmware release
RJ45 Camera control for supported cameras in future firmware release
